SKU: HB1534

Overview

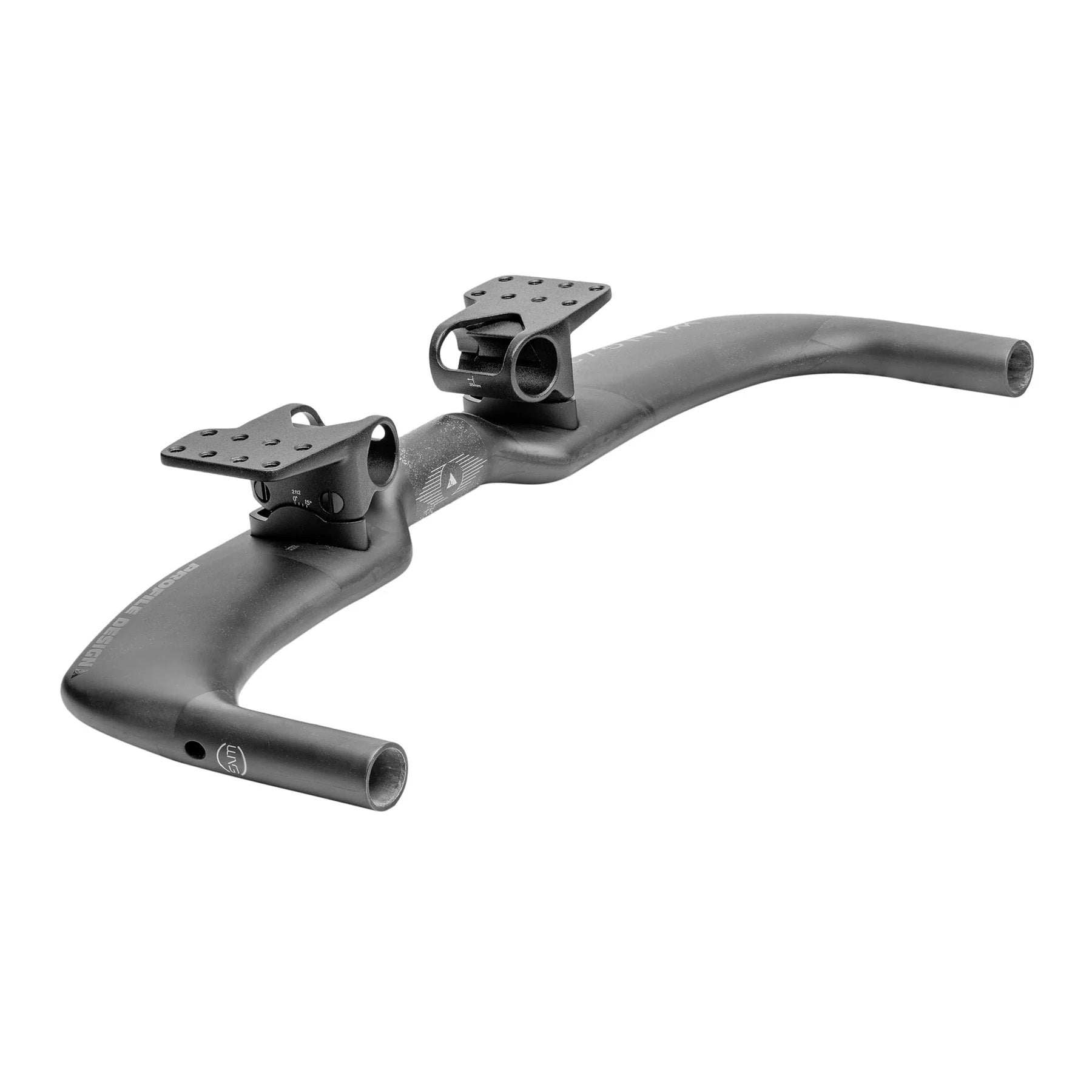

The Wing 20C+ features our updated basebar shape that is optimized for aerodynamics as well as strength and stiffness.

The basebar has the option for adjustment,  turning the bar over changes the height of the hand grip and the aerobar by 20mm.

Performance

The Wing 20C+ offers a combination of aerodynamic integration and supreme fit range. With the change in spec comfort for most users will be increased alongside the performance advantage of lower weight.

Fit Data:

Armrest offset: -92.5mm to -10mm in 7.5mm steps

Armrest Width: 124mm to 254mm in 18.5mm steps

Armrest Stack: The minimum is 64mm to 84mm

This bar is perfect for riders who wish to achieve lower positions than are possible with standard aerobar designs. Unlike other low stack bars it allows fine-tuning of the stack height so the rider is not limited to only one arm pad height. With the Race armrests fitted it is tailored towards riders who intend to be low and narrow to punch the smallest possible hole through the wind.

Tech Specs

Basebar Width: 42cm (Center-to-Center)

Internal Cable Routing: Yes (Stem or Back of the Basebar)

Di2 Compatible: Yes

Bracket: Aeria Ultimate Forged

Armrest: Not Included

Extension Length: Not Included

Extension Clamp Diameter: 22.2mm

Bracket Tilt Adjustment: 0-15°

Pursuit OD/ID: 24.1 / 18.9mm

Construction: Carbon

Color: Matte Black

Suggested Product Options:

- ASC Extensions

- Tri Stem or Aeria Stem ( as shown in the photos )

- Ergo or Race+ Armrest Kit

- Aeria Drink System
